MS / SS 304 / SS 316 PTFE / FEP / PFA LINED BALL CHECK VALVE

Galaxy Thermoplast Pvt. Ltd. is one of the lead exporters and distributors of PFA Lined Ball Check Valves. They are a pioneer in their field and have gained immense recognition in the market. The variety that they offer as well as the numerous services make the customers feel like their needs are being taken care of. SS 304 PFA Lined Ball Check Valves use a free-floating or spring loaded ball resting in a seat ring as the closure element. The mechanics of MS FEP Lined Ball Check Valve operations are relatively simple as compared to other fittings. FEP/PFA Lined Check Valves contain a ball that sits freely above the seat that has only one through-hole. SS 316 PFA Lined Ball Check Valves are best used for services with viscous fluids or when there is sediment in the system because the ball remains clean with smooth operation.

High Quality PTFE Lined Ball Check Valve, Manufacturer of Comprehensive Range PTFE Line Ball Check Valves, Lined Ball Check Valve, Perfluoroalkoxy Lined Ball Check Valve, SS 304 PTFE Lined Ball Check Valve, PFA Lined Ball Check Valve, PTFE Lined Ball Check Valve, SS 316 PTFE Lined Ball Check Valve Supplier in Mumbai, India.



PTFE Lined Ball Check Valve Manufacturer, Polypropylene Lined Ball Check Valve, PTFE Lined Ball Check Valve Price, Largest Stockist of FEP Lined Ball Check Valve, PTFE Lined Stainless Steel Ball Check Valve, Teflon PFA Lined Ball Check Valve, Dealer & Distributor of PFA Lined Ball Check Valve, MS Lined Ball Check Valve in India.

FEP/PFA Lined Ball Check Valves are advantageous is several ways. They can be used with gas, steam, air, water and vapour lines with high flow velocities. MS FEP Lined Ball Check Valves can be installed in lines with a vertical flow. They are also available with renewable seat rings. Galaxy Thermoplast Pvt. Ltd. commits to not compromise on quality, competitive pricing and responsive after-sales service. The range of FEP/PFA Lined Ball Check Valves provided by them, satisfy the customer’s requirements in its entirety.

PTFE Lined Ball Check Valve Specification

Size : 25 NB to 200 NB

Standard Resin Specifications : PTFE : ASTM D 1457, PFA : ASTM D 3307, PVDF: ASTM D 3222, FEP : ASTM D 211

Outer body : ASTM A 395 Gr 60-40-18

Flange Connection : ANSI B 16.5

Face to Face : ANSI B 16.10

Spark Test : 15 KVA

Hydro Test : at 29.8 kg/cm2

FEP- Max Temp : 180° C

PP Max Temp : 100° C

PFA Max Temp : 200° C

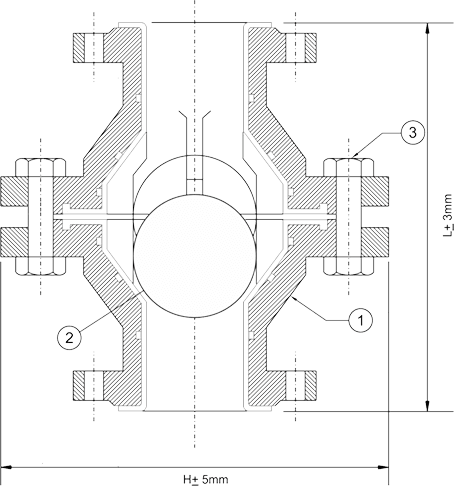

Dimensional Standards of Polytetrafluoroethylene Lined Ball Check Valve


SS 304 Lined Ball Check Valve Dimensions
SIZE
L
H
15
130
105
20
150
115
25
127
125
40
165
160
50
178
175
80
203
240
100
229
270
150
400
330
200
600
381

Dimensional Standards Of Fluorinated Ethylene Propylene Lined Ball Check Valve :

All dimensions are in mm otherwise specified & as per ANSI B1 6.9.


Material of Construction :
NO.
DISCRIPTION
MATERIAL OF CONSTRUCTION
1
Body
Ductile Cast Iron A-395 or SS-A-351 CF 8 with Lining FEP : D-2116 Type - III, PFA : D - 3307, Type - II
2
Ball
100% Virgin PTFE
3
Fasteners
SS-304

PTFE Line Ball Check Valves Ready Stock Available for Various Application Industry

We offer a wide range of MS PTFE Lined Ball Check Valve through a worldwide network of stock-keeping branches. These MS PTFE Lined Ball Check Valves is use in various industries like :

•  SS 304 PTFE Lined Ball Check Valve uses in Chemical Industry

•  PTFE Lined Ball Check Valve uses in Power Generation Plants

•  PFA Lined Ball Check Valves uses in Oil & Gas Industry

•  SS 316 PTFE Lined Ball Check Valves uses in Petrochemical Refining Industry

•  MS FEP Lined Ball Check Valve uses in Paper & Pulp Industry

•  MS PFA Lined Ball Check Valve uses in Pharma Industry

PTFE Lined Ball Check Valve used in Application Industry
