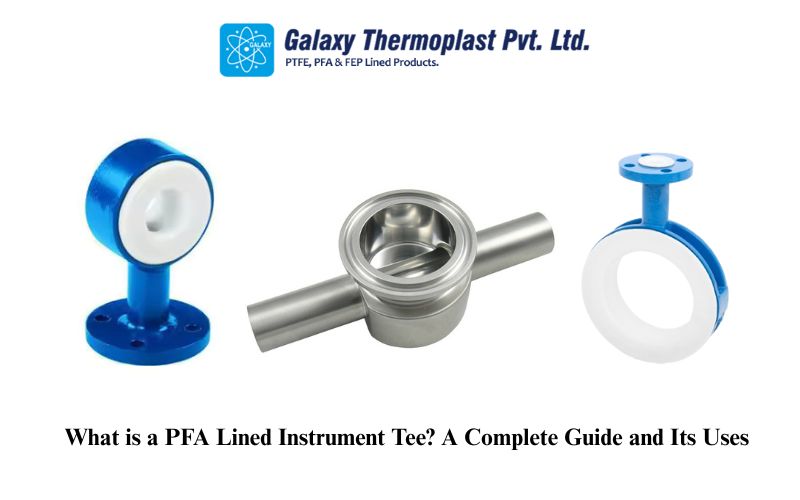

In many industries, fluid handling systems face harsh chemicals, high temperatures and constant pressure. To keep them safe and efficient, reliable fittings are essential. One such fitting is the PFA lined instrument tee. It has a special inner lining that is resistant to corrosion, and chemical destruction, along with a strong metal construction. Due to this, it can be used in systems where conventional fittings would eventually fail. These tees are used in various applications to provide flow precision and leak protection, including chemical factories and pharmaceutical industries. They are among the essential components of modern industrial pipe fittings, ensuring that operations continue to be effective and secure for decades in the future.
What is a PFA Lined Instrument Tee?
A tee lined with PFA is an instrument tee that’s made for industrial piping systems dealing with aggressive fluids. It has a lining of PFA (Perfluoroalkoxy) which is a fluoropolymer that performs extremely well in terms of chemical resistance. This layer protects the metal body from corrosion due to acids, solvents, or other harsh chemicals. Unlike standard tees, which may degrade in contact with corrosive media, this design extends the service life of the fitting. The main PFA lining benefits include non-stick properties, smooth flow, and resistance to high temperatures. As part of corrosion-resistant pipe fittings, it ensures both process reliability and reduced maintenance costs.
Construction and Material
The body of a stainless steel PFA lined tee is usually made from stainless steel or carbon steel. Stainless steel is preferred for high-purity systems, while carbon steel suits general industrial use. The PFA lining is applied using a melt-process technique that ensures even coverage and strong adhesion. Thickness usually ranges between 3 mm to 5 mm, depending on pressure and temperature requirements. To accommodate various installation requirements, these PFA lined pipe fittings include threaded, flanged or socket weld ends. Strict industrial instrumentation fittings standards are adhered to in every design to ensure compatibility and durability.
Types of PFA Lined Instrument Tees
PFA lined instrument tees provide several advantages that enhance the efficiency and reliability of piping systems. They are built to withstand harsh industrial conditions with little maintenance. The following are the key benefits:
- Concentric PFA Lined Tee
This design has the branch connection placed at the center of the main pipe run. It is used for providing uniform flow distribution and reducing turbulence within the pipeline. It is widely used where uniform pressure and flow are necessary across all connections.
- Eccentric PFA Lined Tee
The branch is positioned slightly off-center. This minimizes flow disturbance and prevents sediment accumulation in the main line. It is appropriate for systems dealing with heavy or settling fluids.
- Flanged PFA Lined Tee
This type comes with flanged ends for easy bolting and unbolting. It is preferred in high-pressure pipelines or systems that require frequent disassembly for cleaning, inspection, or maintenance.
- Threaded PFA Lined Instrument Tee
This version has threaded ends, making it ideal for smaller pipes and low-pressure connections. It allows quick installation and removal without the need for welding or special tools.
- Welded PFA Lined Tee
Welded tees are designed for permanent connections. They provide strong, leak-proof joints and are widely used in chemical processing plants where system integrity is critical.
Applications and Uses
PFA lined instrument tees are used where pipes handle corrosive or high-purity fluids. Their chemical resistance and clean surface make them reliable for various industries. Below are the main application areas:
- Chemical Industry
Used for transporting acids, alkalis, and solvents in processing plants. They protect pipelines from corrosion and ensure leak-free flow even in aggressive chemical environments.
- Pharmaceutical Industry
Helps maintain sterile and contamination-free pipelines. The smooth PFA surface prevents chemical reaction with sensitive ingredients used in drug manufacturing.
- Food Processing Industry
Ideal for systems that need non-stick, clean, and hygienic flow paths. They prevent product buildup and support easy cleaning in food grade operations.
- Oil and Gas Industry
It is used for the transportation of harsh chemicals, and liquids in refining and production facilities. They are able to withstand tough environments and minimize leak risks in high-pressure applications.
- High-Purity Fluid Systems
Recommended for applications where fluid purity should not change. The PFA lining provides minimal contamination and seamless transfer of sensitive or valuable fluids.
Advantages of PFA Lined Instrument Tee
PFA lined instrument tees offer several benefits that improve the reliability and efficiency of piping systems. They are designed to handle tough industrial conditions, while keeping maintenance low. Below are the main advantages:
- Corrosion and Chemical Resistance
The metal body is protected with acids, alkalis and solvents by the PFA liner. Even in harsh chemical conditions it ensures a longer service life by preventing corrosion.
- High Temperature and Pressure Handling
These tees maintain their strength, and performance under high temperatures, and pressures. They are suitable for demanding industrial plants, where ordinary fittings may fail.
- Long Life and Low Maintenance
A long lasting instrument tee eliminates the requirement for repeated replacements. This reduces downtime, and reduces maintenance expenses in the long run.
- Easy Installation
Having several end connections, the tees work with standard sizes. They are designed to make installation simpler, and they work with various industrial pipe fitting benefits.
How to Choose the Right PFA Lined Instrument Tee
To select a PFA-lined instrument tee, start by checking its size, pressure rating, and material compatibility. Ensure that the tee is suitable for your system’s temperature and flow conditions. Comply with accepted standards like ASTM or ASME for safe usage. When selecting PFA lined fittings, make sure to consider the suppliers history as well. A trustworthy manufacturer will deliver quality assurance, material test certificates with proper documentation. Use this industrial pipe fittings guide when making your decision.
Maintenance Tips
In order to maintain the PFA lined tee in good condition, clean it on a regular basis to keep out debris or chemical deposits, that can impair flow. During scheduled shutdowns, check the lining for evidence of wear blistering, or damage. Be careful with the fittings when servicing to prevent scratching or breaking the PFA surface. Proper PFA lined fitting maintenance and chemical resistant fitting care practices help to maximize service life, avoid leaks and lower expensive failures in industrial applications.
Conclusion
A PFA lined instrument tee guide helps industries choose the right fitting for harsh environments. These industrial PFA lined fittings provide corrosion resistance, smooth flow, and long-term reliability. From chemicals to food and pharmaceuticals, they play a key role in safe fluid transport. The chemical resistant instrument tee offers low maintenance, long life, and compatibility with many piping systems. For plants aiming to improve safety and reduce downtime, investing in high-quality PFA lined instrument tees is a smart choice.
