MS / SS 304 / SS 316 PTFE / FEP / PFA LINED WAFER TYPE BUTTERFLY VALVE

Galaxy Thermoplast Pvt. Ltd. is a top notch exporter and stockist of PFA Lined Wafer Type Butterfly Valves. They take special care of understanding the needs of their customers and choosing the right material for all the products provided to these customers. SS 304 PFA Lined Wafer Type Butterfly Valves are installed between two flanges using bolts or nuts and studs. MS FEP Lined Wafer Type Butterfly Valves are light-weight. Their initial cost is low and so is the installation cost. SS 316 FEP Lined Wafer Type Butterfly Valves are easier to replace and install as compared to other fittings.

High Quality PTFE Lined Butterfly Valve, PFA Lined Wafer Type Butterfly Valves, SS 304 PTFE Lined Butterfly Valve, Manufacturer of Comprehensive Range PTFE Line Wafer Type Butterfly Valve, SS 316 PTFE Lined Butterfly Valves, Perfluoroalkoxy Lined Butterfly Valve Supplier in Mumbai, India.



Largest Stockist of FEP Lined Butterfly Valve, Dealer & Distributor of PFA Lined Butterfly Valve, PTFE Lined Wafer Type Butterfly Valves Manufacturer, Polypropylene Lined Wafer Type Butterfly Valve, PTFE Lined Wafer Type Butterfly Valve Price, PTFE Lined Stainless Steel Wafer Type Butterfly Valve, Teflon PFA Lined Butterfly Valve, MS Lined Wafer Type Butterfly Valve in India.

MS PFA Lined Wafer Type Butterfly Valves can be used for on/off service or throttling. These FEP Lined Wafer Type Butterfly Valves are quarter turn valves. They function for the purpose to open/close systems as well as controlling the flow. These valves offer several advantages including quarter-turn, openness for less plugging and good control capabilities. FEP/PFA Lined Wafer Type Butterfly Valves can be used in a wide variety of chemical services since its small dimension allows it to be used in small places. Since these FEP/PFA Lined Wafer Type Butterfly Valves have low-pressure drop and recovery apart from other features that appeal to the clients, Galaxy Thermoplast Pvt. Ltd. does a great job of providing it to them.

PTFE Lined Wafer Type Butterfly Valve Specification

Size : 50 NB to 100 NB

Standard Resin Specifications : PTFE : ASTM D 1457, PFA : ASTM D 3307, PVDF: ASTM D 3222, FEP : ASTM D 2116

Outer body : ASTM A 395 Gr 60-40-18

Flange Connection : ANSI B 16.5

Face to Face : ANSI B 16.10

Spark Test : 15 KVA

Hydro Test : at 29.8 kg/cm2

FEP- Max Temp : 180° C

PP Max Temp : 100° C

PFA Max Temp : 200° C

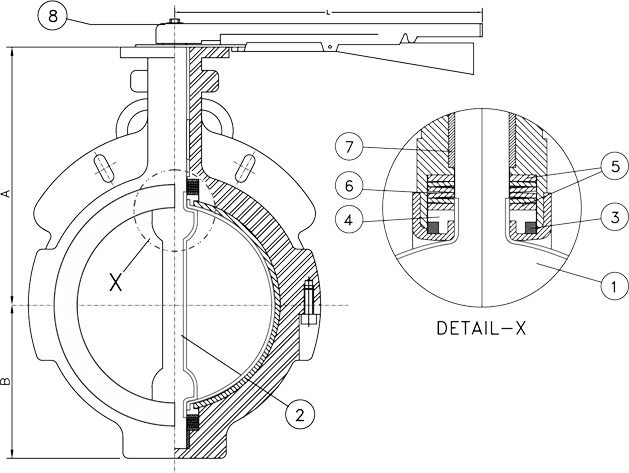

Dimensional Standards of Polytetrafluoroethylene Lined Wafer Type Butterfly Valve


SS 304 Lined Wafer Type Butterfly Valve Dimensions
SIZE
F/F
A
B
L
50
43
100
70
265
65
46
114
70
265
80
46
120
80
265
100
52
158
110
350
125
56
175
125
350
150
56
190
130
430
200
60
220
160
430
250
68
250
185
G.Box
300
78
285
215
G.Box
350
78
325
285
G.Box

Dimensional Standards Of Fluorinated Ethylene Propylene Lined Wafer Type Butterfly Valve :

All dimensions are in mm otherwise specified & as per ANSI B1 6.9.


Material of Construction :
NO.
DISCRIPTION
MATERIAL OF CONSTRUCTION
1
Body
PTFE / FEP / PFA.
2
Disc with Integral lShaft
AISI - 304/316 FEP/PFA Lined
3
Elastomer Backing
Silicon
4
Thrust Collar
PTFE
5
Thrust Washer
SS AISI 304
6
Cup Washers
Spring Steel Nickel Plated
7
Guide Bush
SS AISI 304
8
Lever Assembly
C.S.

PTFE Line Wafer Type Butterfly Valve Ready Stock Available for Various Application Industry

We offer a wide range of MS PTFE Lined Wafer Type Butterfly Valve through a worldwide network of stock-keeping branches. These MS PTFE Lined Wafer Type Butterfly Valve is use in various industries like :

•  SS 304 PTFE Lined Wafer Type Butterfly Valves uses in Chemical Industry

•  PTFE Lined Butterfly Valves uses in Power Generation Plants

•  PFA Lined Wafer Type Butterfly Valves uses in Oil & Gas Industry

•  SS 316 PTFE Lined Butterfly Valves uses in Petrochemical Refining Industry

•  MS FEP Lined Wafer Type Butterfly Valve uses in Paper & Pulp Industry

•  MS PFA Lined Wafer Type Butterfly Valve uses in Pharma Industry

PTFE Lined Wafer Type Butterfly Valve used in Application Industry
