MS / SS 304 / SS 316 PTFE / FEP / PFA LINED BUCKET TYPE STRAINER

Galaxy Thermoplast Pvt. Ltd. is a pioneering supplier, exporter and stockist of PFA Lined Bucket Type Strainer. They are a nationally and internationally accredited company for the production and distribution of this type of strainer. This filter is in the shape of a bucket and so it is called a Bucket Type Strainer. MS FEP Lined Bucket Type Strainers are named after their shape. It is used for coarse filtration. It has a longer service life compared to other strainers. SS 304 PFA Lined Bucket Type Strainer have a compact assembly and exhibit optimum performance. It is designed to give minimum pressure drop.

Manufacturer of Comprehensive Range PTFE Line Bucket Type Strainer, Perfluoroalkoxy Lined Bucket Type Strainer, SS 304 PTFE Lined Bucket Type Strainer, PFA Lined Bucket Type Strainer, PTFE Lined Bucket Type Strainer, SS 304 PTFE Lined Bucket Type Strainer, High Quality PTFE Lined Bucket Type Strainer Supplier in Mumbai, India.



Polypropylene Lined Bucket Type Strainer Manufacturer, PTFE Lined Bucket Type Strainer Price, Largest Stockist of FEP Lined Bucket Type Strainer, PTFE Lined Stainless Steel Bucket Type Strainer, Teflon PFA Lined Bucket Type Strainer, Dealer & Distributor of PFA Lined Bucket Type Strainer, MS Lined Bucket Type Strainer in India.

SS 316 PFA Lined Bucket Type Strainers it is a closed vessel with cleanable or removable screen or element for removing particles from liquids or gases. It has the ability to clean out 100% of the clogging materials. In MS PFA Lined Bucket Type Strainer, a drain connection is provided to remove the accumulated particles or solids. It is designed four times bigger than the Lined are and so it does not require frequent cleaning. Galaxy Thermoplast Pvt. Ltd. possesses advanced technology that assures clients of the superior quality products being offered to them. They are a well-established producer and dealer of FEP/PFA Lined Bucket Type Strainers.

PTFE Lined Bucket Type Strainer Specification

Size : 25 NB to 300 NB

Outer body : ASTM A 395 Gr 60-40-18

Flange Connection : ANSI B 16.5

Face to Face : ANSI B 16.10

Spark Test : 15 KVA

Hydro Test : at 29.8 kg/cm2

FEP- Max Temp : 180° C

PP Max Temp : 100° C

PFA Max Temp : 200° C


Dimensional Standards of Polytetrafluoroethylene Lined Bucket Type Strainer

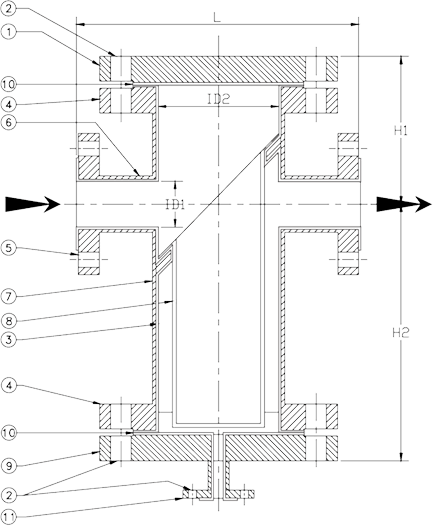

SS 304 Lined Bucket Type Strainer Dimensions
NB
ID1
ID2
H1
H2
L
50
42
92
150
250
225
80
72
148
171
291
350
100
92
189
216
330
400

NO.
DESCRIPTION
MATERIAL OF CONSTRUCTION
1
Cover
FEP/PFA Lined MS/SS Plate
2
Bolt Nut
MS/SS
3
Lining
FEP/PFA
Body Flange
As Per ANSI B 16.5 (150#)
5
Nozzle Flange
As Per ANSI B 16.5 (150#)
6
Nozzle Pipe
As Per ANSI 36.10 sch-40/80
7
Body Pipe
As Per ANSI 36.10 sch-40/80
8
Element
FEP/PFA
9
Bottom Plate
FEP/PFA lined MS/SS Plate
10
Gasket
PTFE
11
Blind Flange
MS/SS

Dimensional Standards Of Fluorinated Ethylene Propylene Lined Bucket Type Strainer :

All dimensions are in mm otherwise specified & as per ANSI B16.9.


Material of Construction :

A) Strainers are supplied either in FEP OR PFA lined depending on process liquid handled & as per standard resin specification. ASTM D 2116 & ASTM D 3307 Type II respectively.

B) Seamless Carbon steel pipes confirm ASTM-A-106 GRD. B Sch.40/20.

C) Strainers are being supplied with fixed flanges & confirms to ASTM A-105 or IS-2062.

D) GTPL offers SS fittings as per individual customer's requirement.


PTFE Line Bucket Type Strainer Ready Stock Available for Various Application Industry

We offer a wide range of MS PTFE Lined Bucket Type Strainer through a worldwide network of stock-keeping branches. These MS PTFE Lined Bucket Type Strainer is use in various industries like :

•  SS 304 PTFE Lined Bucket Type Strainers uses in Chemical Industry

•  PTFE Lined Bucket Type Strainer uses in Power Generation Plants

•  PFA Lined Bucket Type Strainer uses in Oil & Gas Industry

•  SS 316 PTFE Lined Bucket Type Strainer uses in Petrochemical Refining Industry

•  MS FEP Lined Bucket Type Strainer uses in Paper & Pulp Industry

•  MS PFA Lined Bucket Type Strainer uses in Pharma Industry

PTFE Lined Bucket Type Strainer used in Application Industry
